Linear rail belt drive BCX series

A versatile model designed for fit in almost any machine or project, this new model has high accuracy customized length of up to 4 meters, anti-corrosion material, maintenance-free, noiseless at low and high speeds, low vibration in the complete body, high reliability, long durability, flexible add-ons and warranty up to 3 years.

linear belt drive, linear rail guide
linear motion bearings


Positioning repeatability: ±0.05MM

Max load capacity: 10KG

Width: 40MM

Pitch: 75MM

Max length: 4000MM

timing belt linear actuator, belt linear actuator
linear guide rail systems


Positioning repeatability: ±0.05MM

Max load capacity: 25KG

Width: 50MM

Pitch: 95MM

Max length: 6000MM

toothed belt linear guide
modular guide motorized


Positioning repeatability: ±0.05MM

Max load capacity: 35KG

Width: 60MM

Pitch: 95MM

Max length: 6000MM

You might also like to see these models

linear actuator belt drive
linear rail guide belt drive
linear ball screw actuator
ball screw linear rail

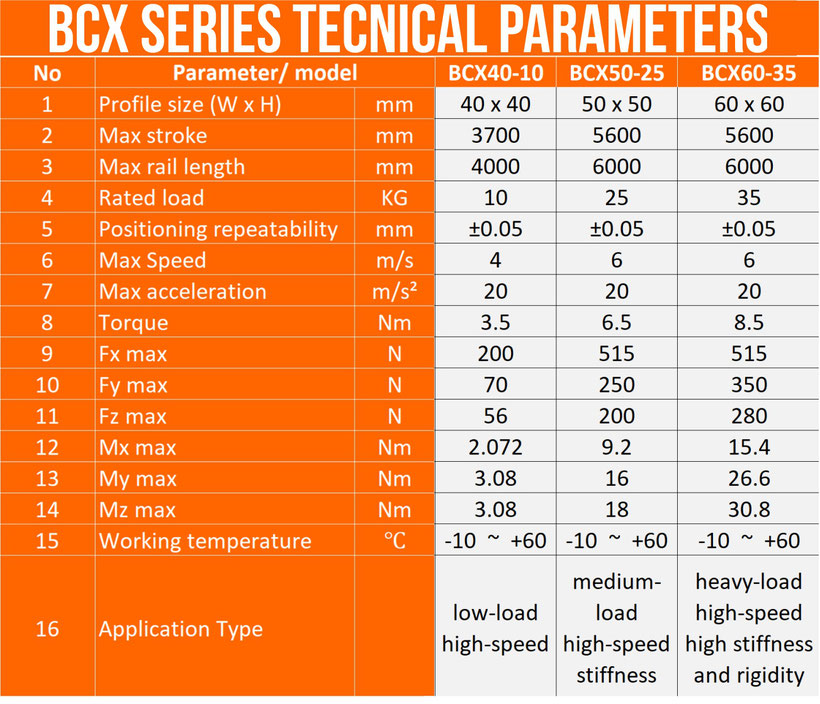

BCX series technical parameters

Linear guide rail belt drive technical parameters

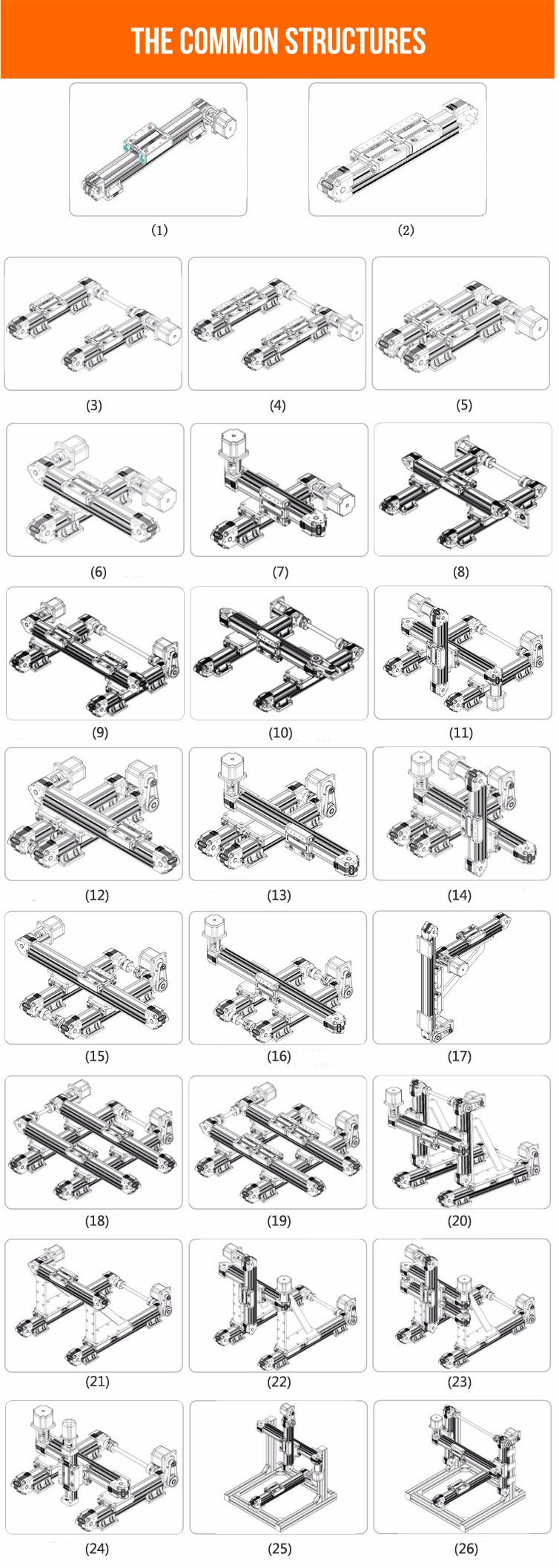

belt type linear actuator common structures
