Ball screw linear modular rail BCS series

With a German screw, our linear ball screw rail has high accuracy, repeatability, and durability with a Maximum stroke length of 300MM, anti-corrosion materials, low maintenance, noiseless, low or non-vibration, high reliability, high durability and with a warranty of up to 3 years.


linear slide, barch motion, ball screw
barch motion ball screw

BCS35-300

Positioning repeatability: ±0.02MM

Load capacity: 10KG

Width: 53MM

Pitch: 2.5MM

Max length: 504.5MM

ball screw, linear motion rail
ball screw

BCS35-200

Positioning repeatability: ±0.02MM

Load capacity: 10KG

Width: 53MM

Pitch: 2.5MM

Max length: 404.5MM

linear guideway ball screw
bacrh motion ball screw

BCS35-100

Positioning repeatability: ±0.02MM

Load capacity: 10KG

Width: 53MM

Pitch: 2.5MM

Max length: 304.5MM



You might also like to see these models

linear actuator belt drive
linear rail guide belt drive
linear slider belt drive
linear guideway


BCS technical parameters

Ball screw barch motion linear guide

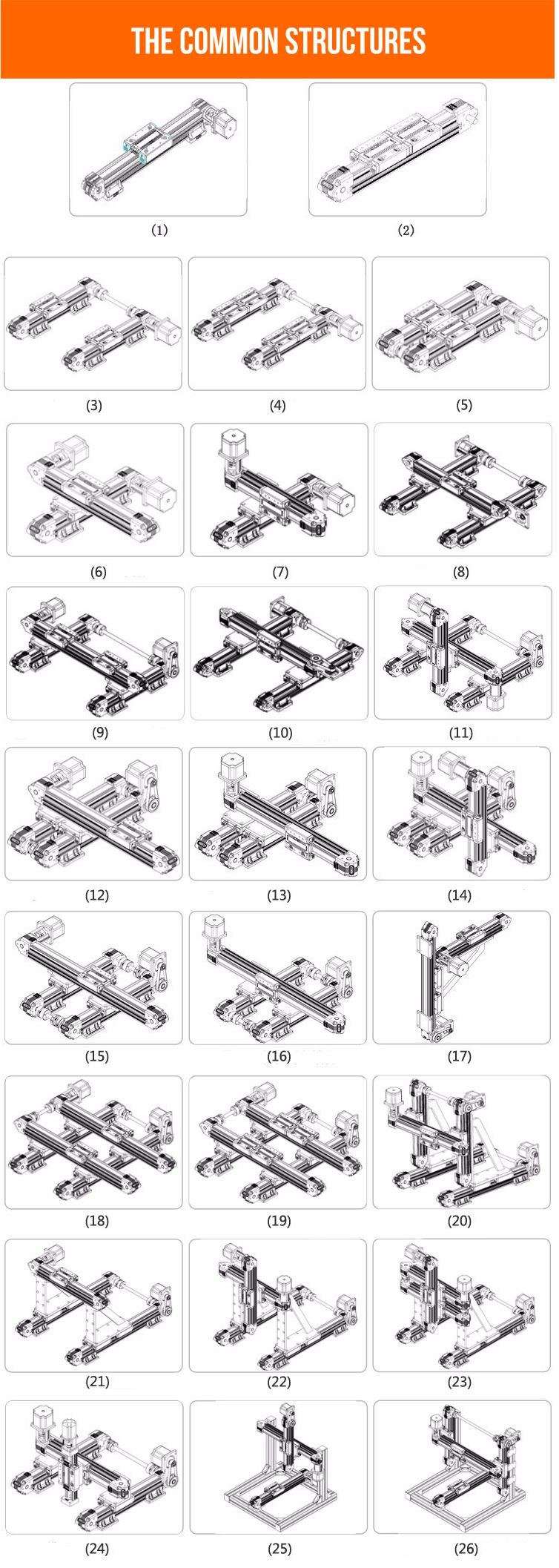

Linear guide rail common sturctures
